Dom /Produkty/Maszyna Pick and Place SMT/Offline PCBA Curve Cutting Machine Single Double Table PCBA Router Machine

Offline PCBA Curve Cutting Machine Single Double Table PCBA Router Machine

1
MOQ
USD 16000-22000 Per Set
Cena £
Offline PCBA Curve Cutting Machine Single Double Table PCBA Router Machine
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Single workable area: 350mm x 400mm
Double workable area: 750mm x 400mm
Plate positioning way: Fixture positioning, vision correction
Spindle motor speed: 60000rpm/min
Maximum cutting speed: 200mm/s
Max Moving Speed: 1000mm/s
Cutting repeat accuracy: 0.01mm
Cutting function: Straight line, slash, arcs,round
Machine size: 1550mm*1350mm*1450mm(With the display)
Podstawowe informacje
Place of Origin: China
Nazwa handlowa: Horeal
Orzecznictwo: CE

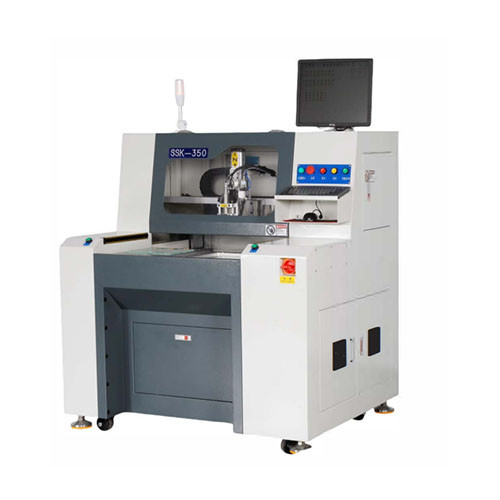

Model Number: SSK-350
Document: PCBA milling depanelizer.pdf
Zapłata
Szczegóły pakowania: Eksportuj opakowania z drewna
Czas dostawy: 20 dni roboczych
Payment Terms: T/T
Możliwość Supply: 100 zestawów miesięcznie
opis produktu
Offline PCBA Curve Cutting Machine Single Double Table PCBA Router Machine
Key Specifications
Attribute Value
Single workable area 350mm x 400mm
Double workable area 750mm x 400mm
Plate positioning way Fixture positioning, vision correction
Spindle motor speed 60000rpm/min
Maximum cutting speed 200mm/s
Max Moving Speed 1000mm/s
Cutting repeat accuracy 0.01mm
Cutting function Straight line, slash, arcs, round
Machine size 1550mm*1350mm*1450mm (With the display)
Product Features
High pixel CCD zoom lens with auxiliary program teaching and editing features for enhanced precision and clearer imaging
PCB upper and lower feeding device for two-platform interaction, reducing machine idle time and optimizing production efficiency
Automatic correction MARK point positioning system with real-time display and path tracking for ±3mm automatic route correction
Tool life monitoring with customizable distance and frequency settings to extend cutter lifespan
Transparent security door design for clear process visibility and accident prevention
Fast CAD file programming capability for precise, time-saving product knife road editing
Technical Specifications
Model No SSK-350
Foot adjustable height 60~100mm
Control motor type RUKING-SEAZ-20LRCP
X Y Z's largest mobile area 800mm x 450mm x 60mm
Plate thickness <5mm
Cooling way Since the cold
Replace the tool way Special wrench to replace
Filtration system power 2.2KW380V Motor
Power 2KW AC220V
Air supply 2~5KG/cm2
Program memory According to need to select the storage location
Configuration programming CCD computar series high pixel color CCD
Dust collection Lower dust and independent dust collection
Cutter diameter compensation Automatic compensation
Shaft position accuracy 0.001mm
Cutting accuracy 0.02mm
Weight About 750KG
Offline PCBA Curve Cutting Machine Single Double Table PCBA Router Machine 0
